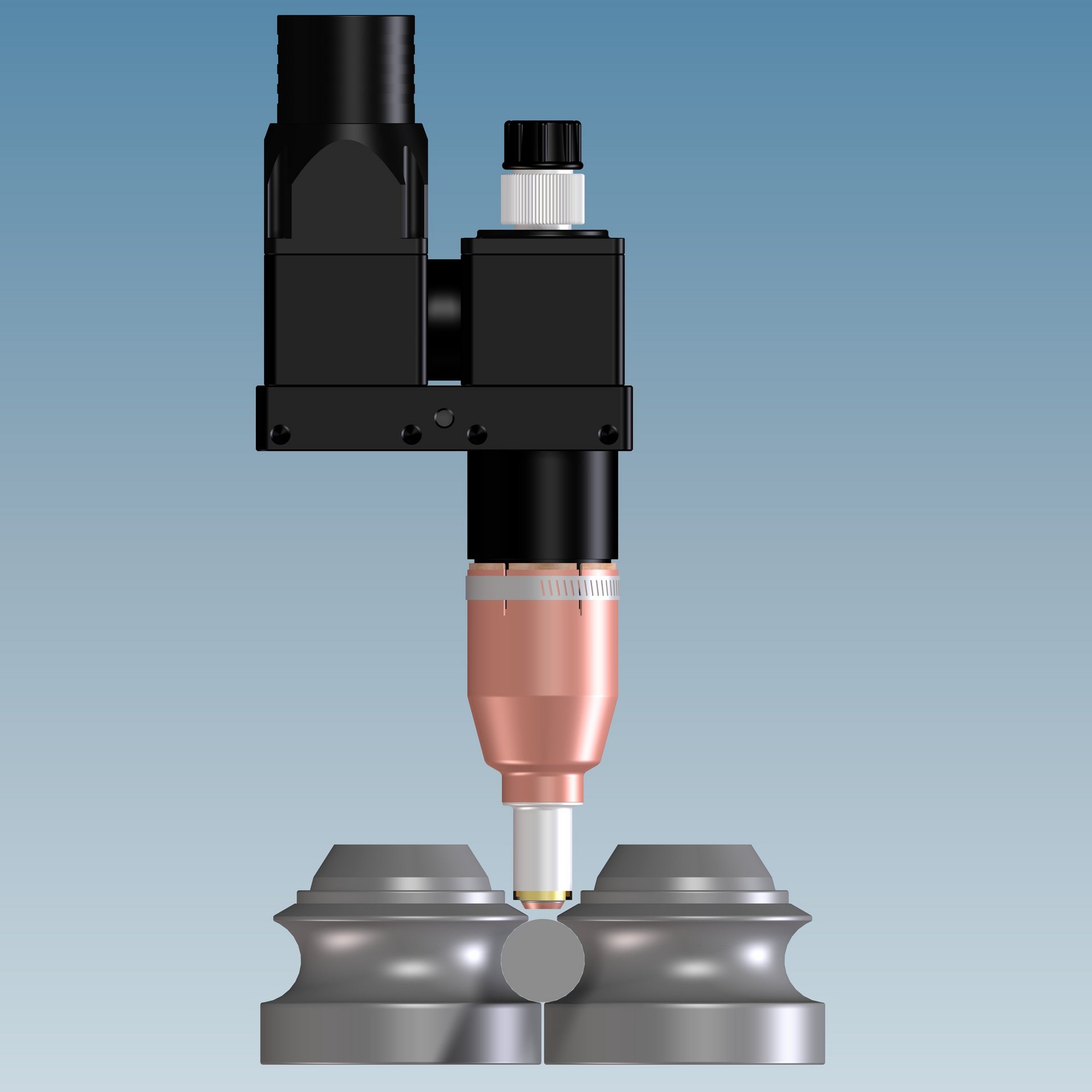

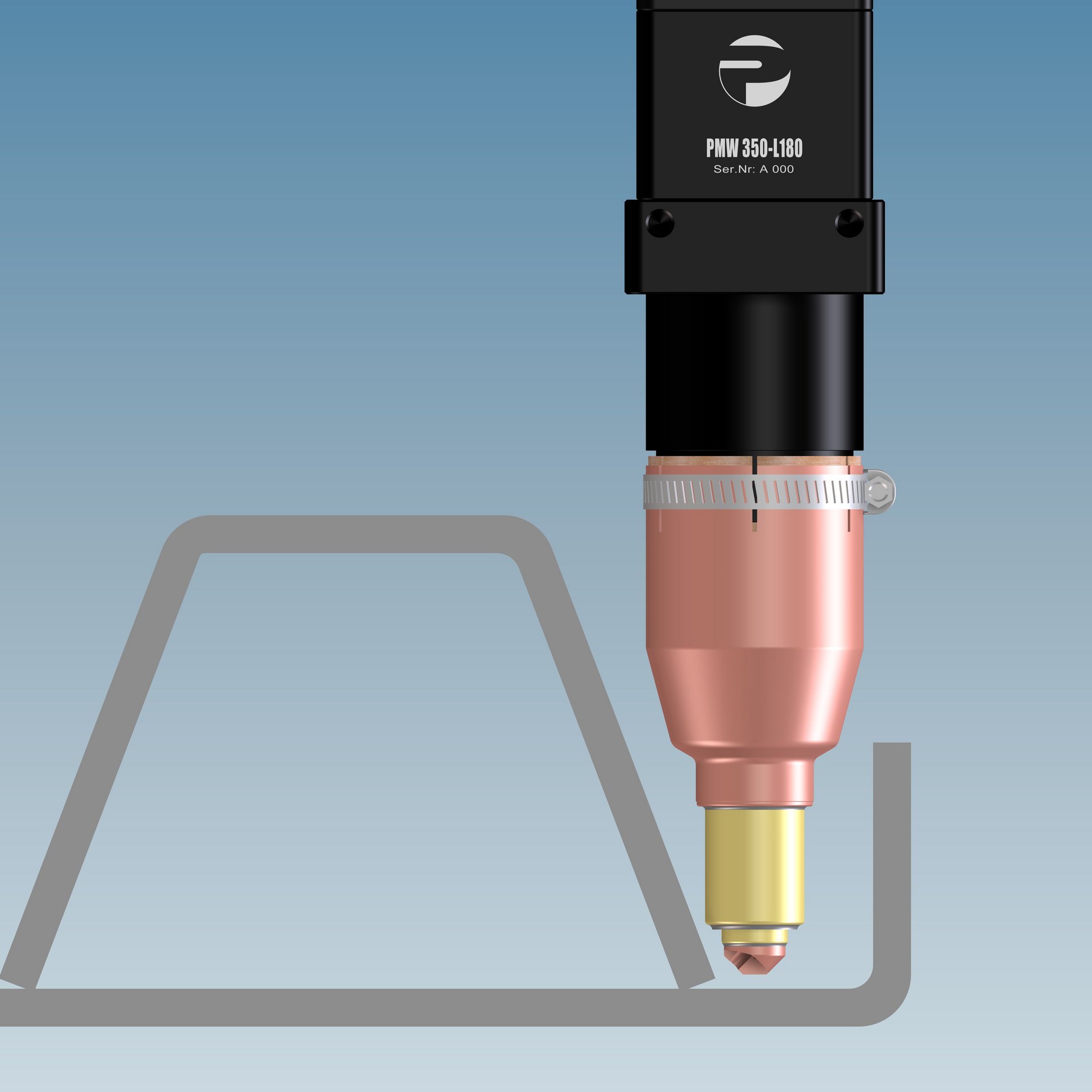

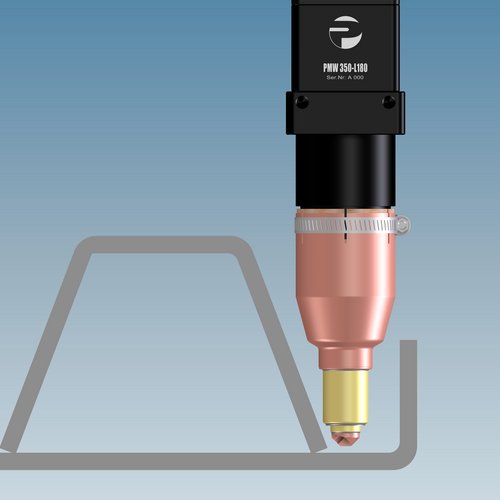

PMW 350-L180

Description

High performance 350 A plasma welding torch for mechanized welding with keyhole effect. Laminar shield gas flow by special designed trailing gas nozzle. Because of the wide-ranging accessories this plasma welding torch is suitable for all standard applications as well as for the most of specialized applications.

The special intensive cooling of the welding nozzle improves its lifetime around a multiple in opposite to conventional plasma torches.

The electrode setting unit can be preset outside of the torch and can be exchanged quickly without dismantling of the welding nozzle. Because of the special designed electrode fixing unit you are able to modify the electrode distance as well as the arc characteristic during the welding process.

Accessories

• Trail Gas Nozzles for better gas shielding behind the weldseam
• Long plasma nozzles with adaptable shield gas supply for welding applications with limited access to the welding area
• Cold Wire Supply for exact guiding of the wire in the arc
• Transversal Wire Adjustment for easy adjustment of the wire to the middle of the seam
• Special coolant to prevent electrolytic corrosion in the welding system. Saves the pump, the hose package as well as the cooler

Highlights

• Water-cooled shieldgas nozzle made of coppper for the best life time
• Cooled trail gas nozzle for laminar shield gas flow
• Cold wire supply with transversal wire adjustment for easy adjustment of the wire

Technical Data
