PlaTo100-M

Description

The PlaTo100-M plasma machine welding torch currently offers the highest possible power density with the smallest possible external dimensions thanks to its consistent miniaturisation of the individual components.

Thanks to the extensive range of accessories, these plasma torches are ideally suited for all standard and most specialised applications.

Accessories

• More than 300 different plasma nozzles
• Special nozzles for TIG-welding with pilot arc
• Gas nozzles with different lengths and opening cross-sections
• Trail gas nozzles for better gas shielding
• Cold wire supply for exact guiding of the wire in the arc
• Transversal wire adjustment for easy adjustment of the wire
• Acoustic electrode setting unit for easy and exact setting of theelectrode
• Special coolant - protects the torch, pump and cooling circuit

Highlights

• Simple assembly of the wear parts
• Long service life of torch and wear parts

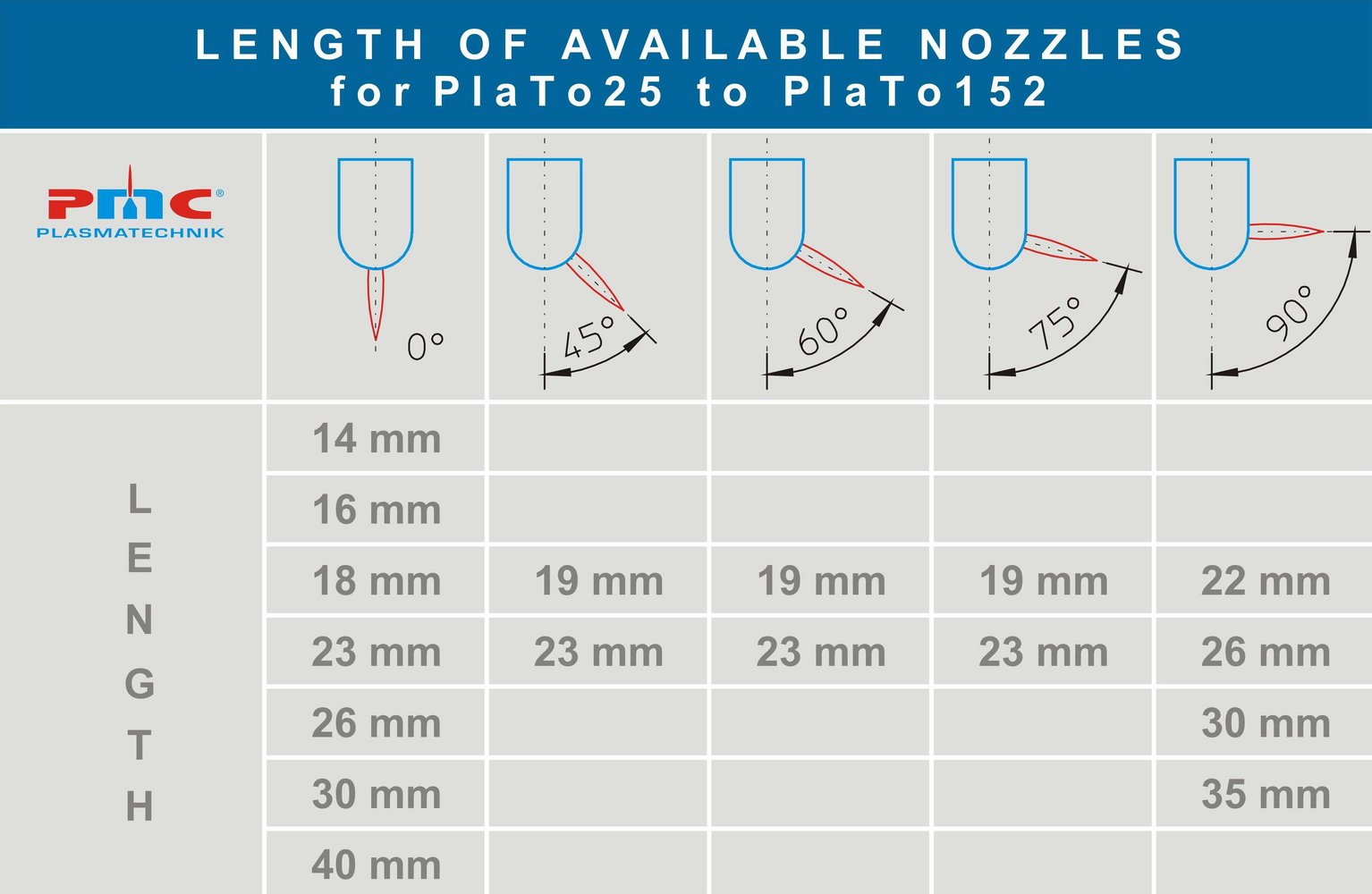

• Large selection of plasma nozzles available: nozzles in various lengths and angled nozzles with different outlet angles suitable for difficult applications.

Note

Due to its versatility and reliability the PlaTo100-M is preferentially used as a replacement torch for the plasma torches ABIPLAS® WELD 100W MT, MP 2-21, MP 5-21, PMB 50 and similar.

Technical Data
