TIG Mechanized Welding Torch WB1000
Description

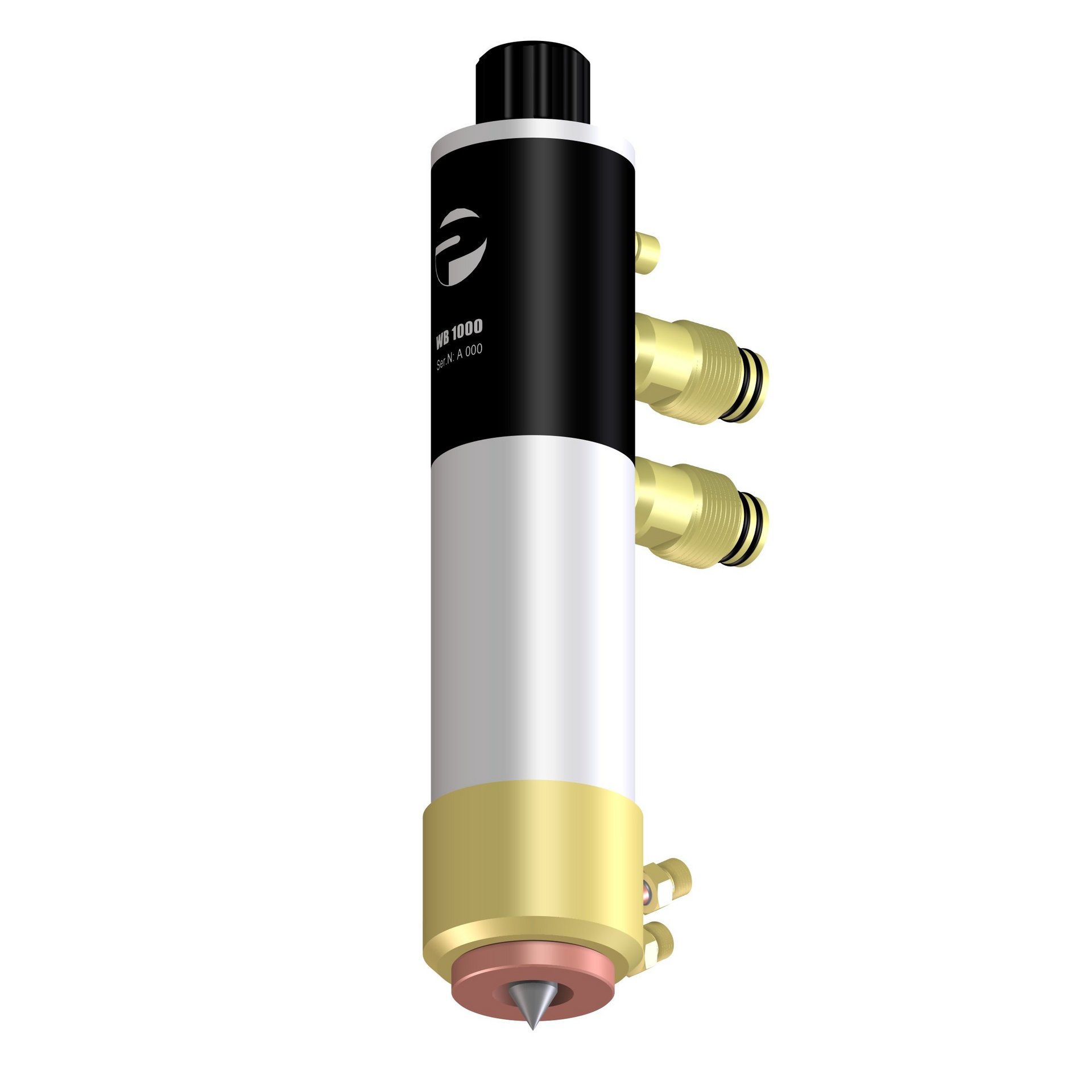

Powerful 1000 A automatic TIG welding torch for mechanised high-current welding. The torch is designed for continuous operation under maximum load. Specially developed ceramic gas nozzles and the optionally available water-cooled gas nozzle (as shown) with various inserts ensure a laminar shielding gas flow at all times for optimum protection of the weld seam. Various electrode diameters from 4.0 to 12.0 mm allow easy adaptation to a wide range of welding tasks.
Accessories
- Various ceramic gas nozzles with different lengths and openings
- Water-cooled gas nozzle with opening diameters of 20 and 24 mm
- Connection hose package to the power source
- Power/water adapter for connecting different types of power sources
Technical Data
| Electrode cooling: | indirect water-cooled |
| Nozzle cooling: | indirect water-cooled |
| Weldable thickness: | 3 up to 12 mm |
| Max. welding current: | 1000 A |
| Electrode diameter: | 4.0 to 12.0 mm |
| Duty cycle: | 100 % |
| Coolant flow rate: | 10 - 12 L/min |
| Shield gas: | Argon, Argon/Hydrogen, Argon/Helium |
| Total length: | 250 mm |
| Shaft diameter: | 50 mm |
| Application: | Reactor Engeneering Pipeline Construction Power Plant Construction Instrument-making Longitudinal and circumferential Seams Pipeflange joints a.s.o. |
