PTi100

Description

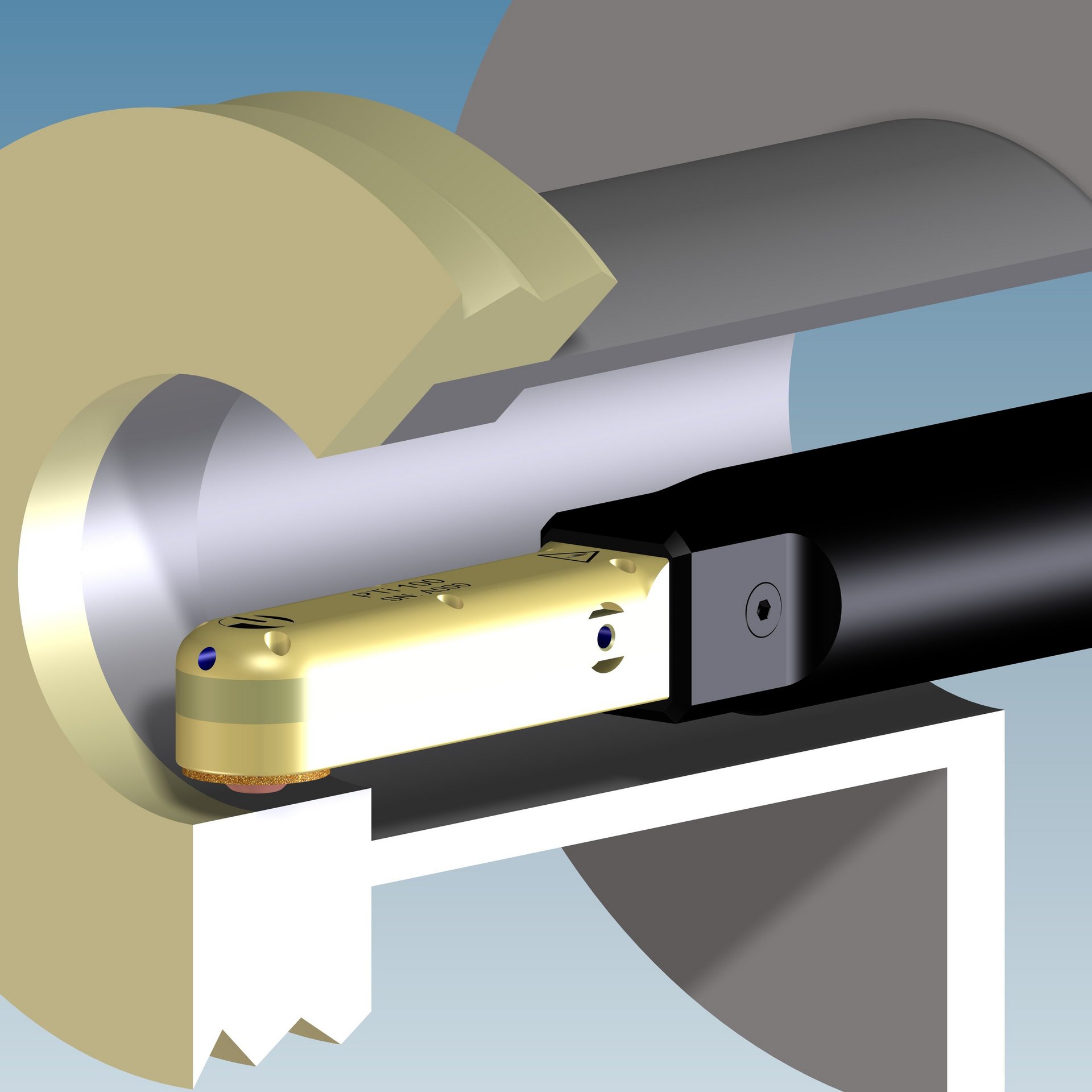

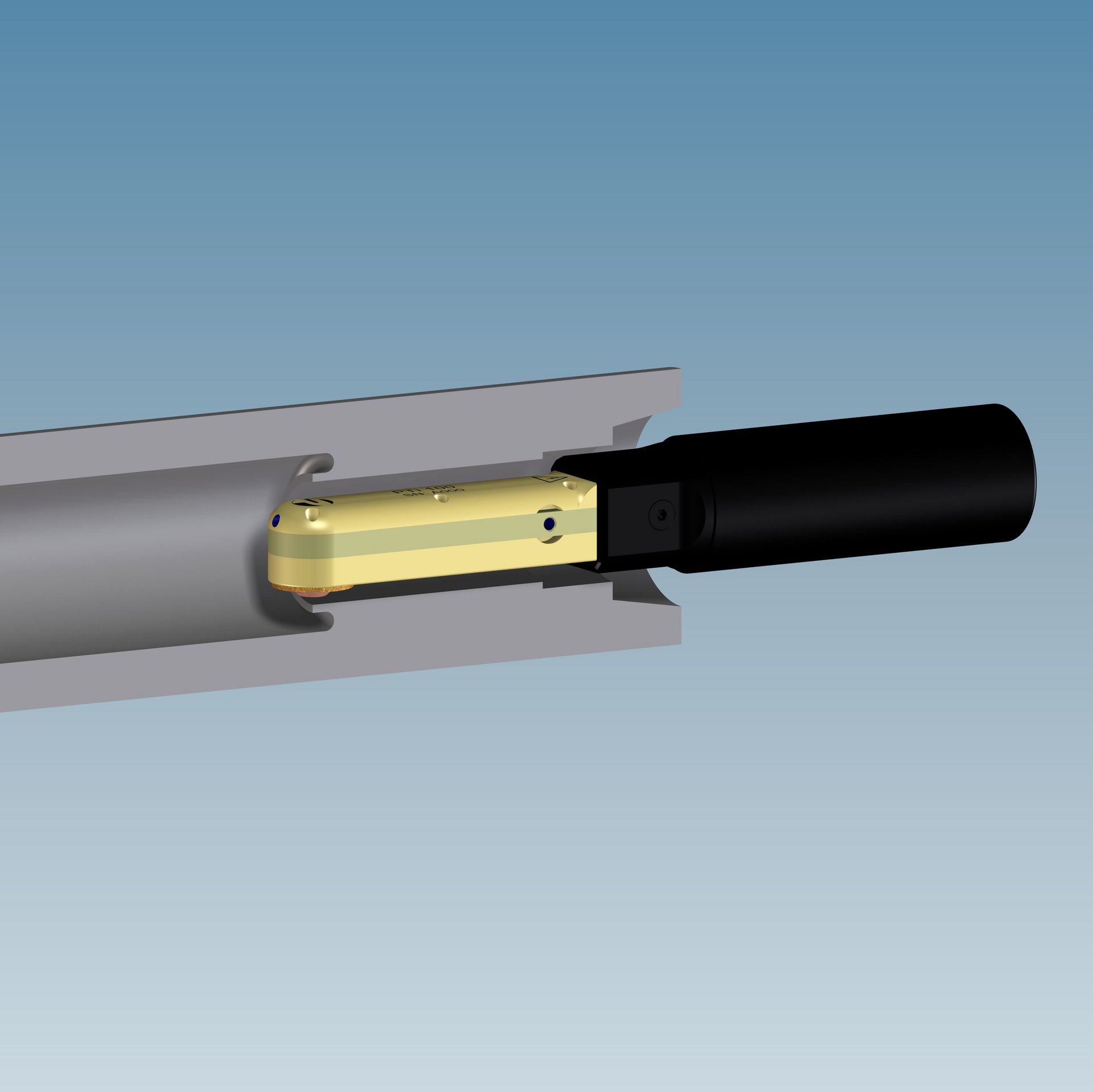

Extremely small water-cooled and therefore despite its minimal dimensions, high performance 100 A plasma welding torch for inside welding of components from an internal diameter of 25 mm.

Design

  • Round clamping shaft for welds up to a depth of 60 mm
  • Special holders for welding depths of up to 200 mm

Highlights

For reducing the distortion and/or reducing the weld time you can work simultaneously with two plasma torches using tandem holders in pipes with a diameter of 55 mm onwards.

Technical Data

Electrode cooling:indirect water-cooled
Nozzle cooling:indirect water-cooled
Weldable thickness:0.05 to 4 mm
Max. current-carrying capacity:100 A
Duty cycle:100 %
Plasma gas:Argon
Shield gas:Argon, Argon/Hydrogen,
Argon/Helium

Application:Reactor engeneering
Pipeline construction
Power plant construction
Instrument-making
Electric motor construction
Transformer construction
a.s.o.
