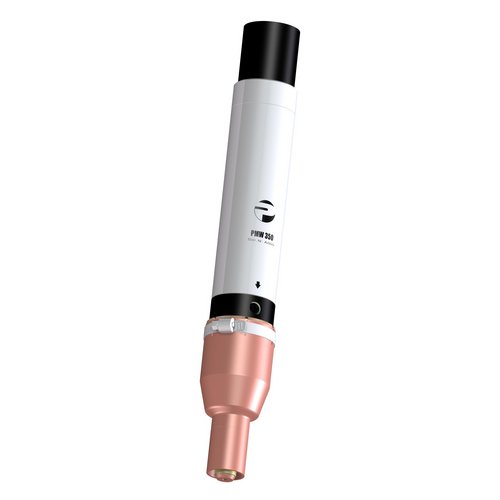

PMW 350
Description
High performance 350 A plasma welding torch for mechanized welding with keyhole effect. Laminar shield gas flow by special designed trailing gas nozzle. Because of the wide-ranging accessories this plasma welding torch is suitable for all standard applications as well as for the most of specialized applications.
The special intensive cooling of the welding nozzle improves its lifetime around a multiple in opposite to conventional plasma torches.
Accessories
- Trail Gas Nozzles for better gas shielding behind the weldseam
- Long plasma nozzles with adaptable shield gas supply for welding applications with limited access to the welding area
- Cold Wire Supply for exact guiding of the wire in the arc
- Transversal Wire Adjustment for easy adjustment of the wire to the middle of the seam
- Special coolant to prevent electrolytic corrosion in the welding system. Saves the pump, the hose package as well as the cooler
Highlights
- Extensive range of accessories for all common and most special applications
- Long service life of the welding nozzle compared to conventional torches
Technical data
| Electrode cooling: | indirect water-cooled |
| Nozzle cooling: | direct water-cooled |
| Weldable material thickness: | 2 up to 10 mm |
| Max. current-carrying capacity: | 350 A |
| Duty cycle: | 100 % |
| Plasma gas: | Argon |
| Shield gas: | Argon, Argon/Hydrogen, Argon/Helium |
| Application: | Reactor engeneering Pipeline construction Power plant construction Instrument-making Longitudinal and circumferential seams Pipe-flange joints a.s.o. |
