PMB 50
Download:
Description

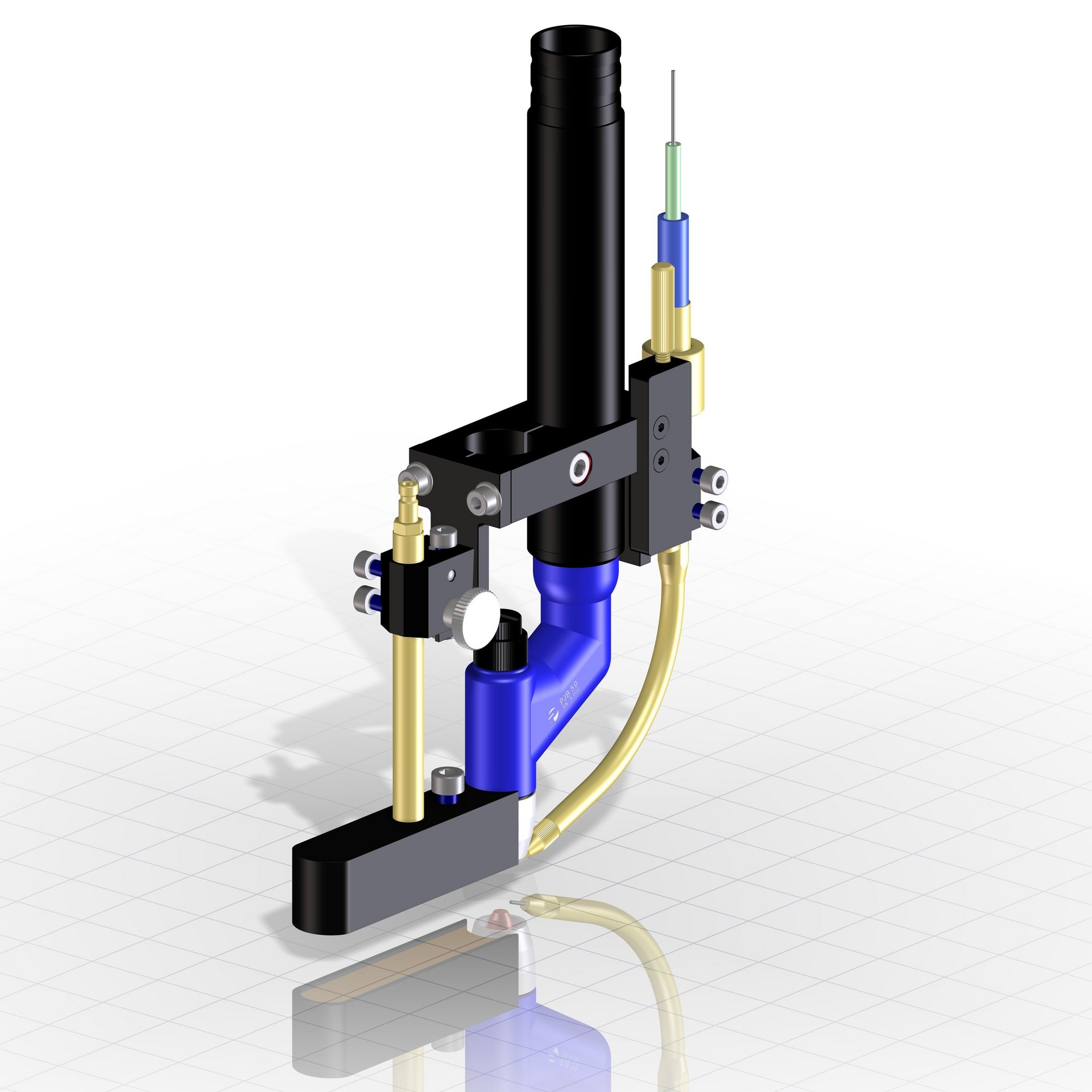

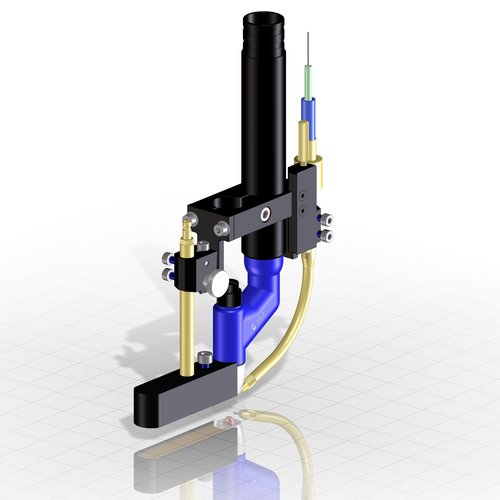

Water-cooled and therefore powerful 50 A microplasma machine welding torch for plasma welding of foils, wires and screens made of high-alloy steels, nickel, copper and titanium alloys from 0.05 mm to 3 mm thick.
The PJB 50 torch series is compatible with the plasma welding torches in the PB 50 series, but offers considerably more application options thanks to the extensive range of accessories available. As a result, this new series is now more suitable than ever for all standard and most specialised applications.
Accessories
- Two different nozzle types
- Trailing gas nozzles to improve gas protection
- Cold wire feeder for precise feeding of the welding wire
- Cold wire cross adjustment for precise adjustment of the wire
- Ergonomic handles with and without additional potentiometer for adjusting the welding current even during the welding process
- Special coolant - protects the torch, pump and cooling circuit
Note
We would like to inform you that the supply of wearing parts is still guaranteed. Due to its versatility, the new version of the PJB 50 is recommended as a replacement torch.
Technical Data
| Electrode cooling: | indirect water-cooled |
| Nozzle cooling: | indirect water-cooled |
| Weldable thickness: | 0.05 up to 3 mm |
| Max. on + polarity: | 50 A |
| Max. on - polarity: | 30 A |
| Duty cycle: | 100 % |
| Plasma gas: | Argon |
| Shield gas: | Argon, Argon/Hydrogen |
| Application: | Electrical industry Aerospace industry Reactor engineering Measuring instrument techniques Instrument-making Sieve manufacture Dental laboratory Aluminium a.s.o. |
