PlaTo151-Rob20°

Description

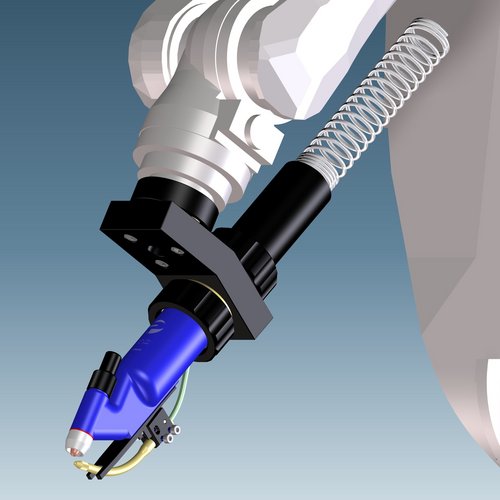

Extremely compact and at the same time equipped with the highest power density plasma robot welding torches with a medium interface designed as a quick-change unit. Thanks to the extensive range of accessories, these plasma torches are ideally suited for all standard and most specialised applications. The PlaTo101-Rob20° and PlaTo151-Rob20° reliably cover the 0.5 to 100 A and 0.5 to 150 A power ranges. Both types use the same wearing parts.

Accessories

  • More than 300 different plasma nozzles, even with various exit angles for the plasma jet, to solve the most complex welding applications
  • Special nozzles for TIG-welding with pilot arc
  • Various gas nozzles with different lengths and opening cross-sections
  • Various trail gas nozzles for better gas shielding behind the weldseam
  • Cold wire supply for exact guiding of the wire in the arc
  • Acoustic electrode setting unit for easy and exact setting of the electrode
  • Special coolant to prevent electrolytic corrosion in the welding system. Saves the pump, the hose package as well as the cooler

Highlights

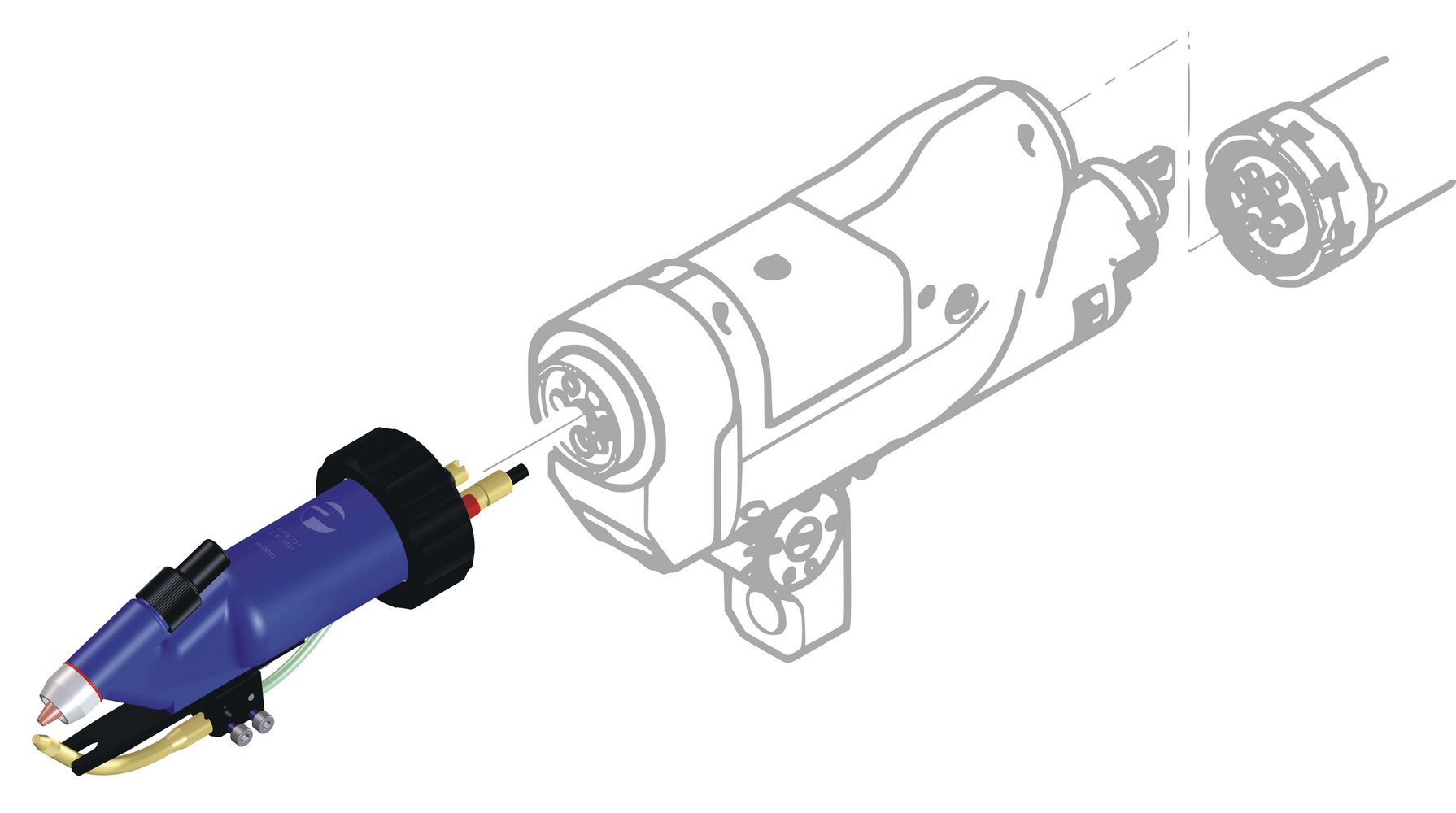

  • Central quick-change interface for all media
  • Special torch holder allows the torch to be used in alignment with the robot axis

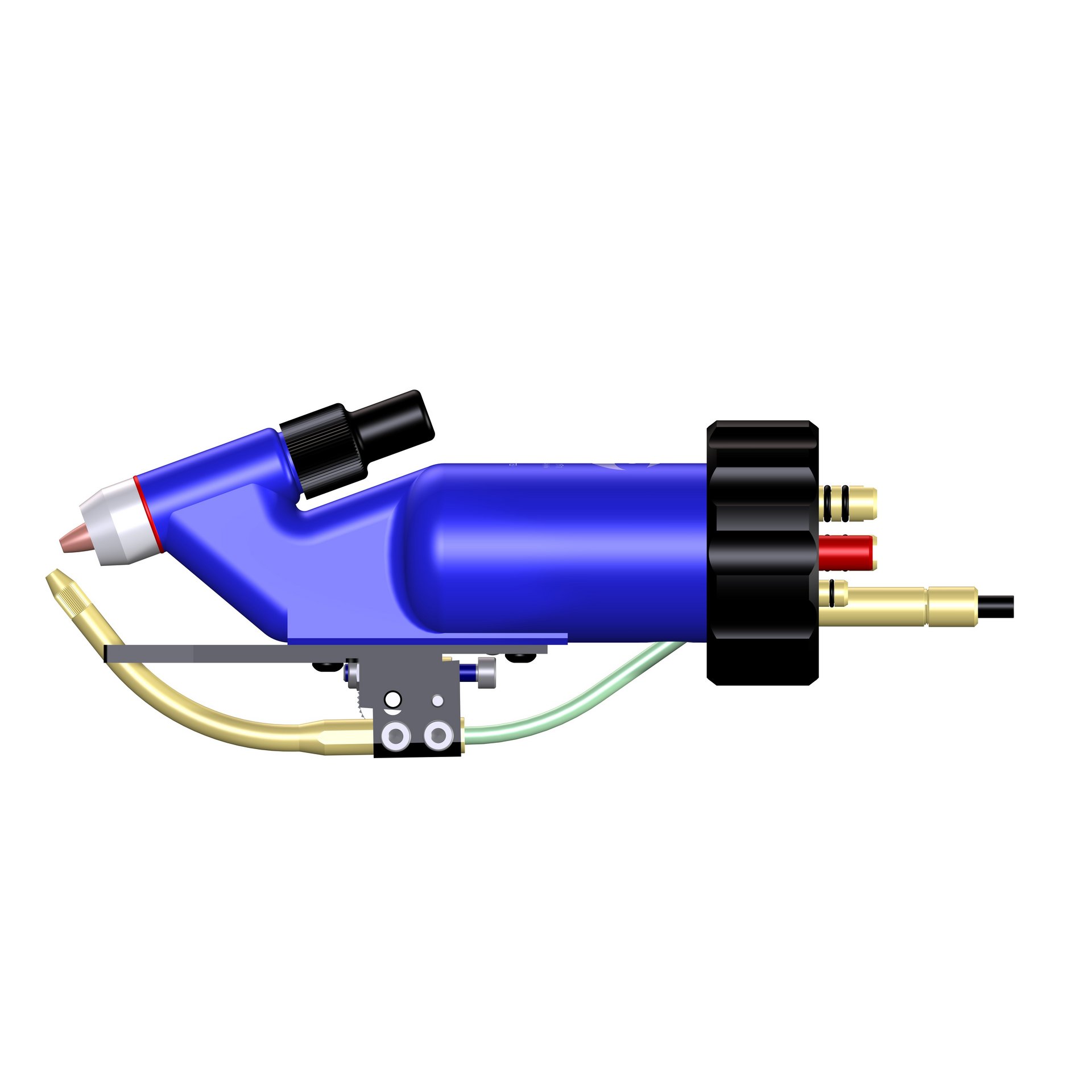

  • Integrated mounting plate for easy installation of the adjustable cold wire feeder
  • Simple assembly of the wear parts
  • Long service life of torch and wear parts
  • Large selection of plasma nozzles available: nozzles in various lengths and angled nozzles with different outlet angles for difficult applications

Technical Data

Electrode cooling:indirect water-cooled
Nozzle cooling:indirect water-cooled
Weldable thickness:0.1 up to 6 mm
Max. welding current:150 A
Duty cycle:100 %
Plasma gas:Argon
Shield gas:Argon, Argon/Hydrogen

Application:Electrical industry
Aerospace industry
Reactor engineering
Measuring instrument techniques
Instrument-making
Sieve manufacture
Corrugated flexible hose making
Blade and impeller weld repair
a.s.o.
